NTN 7306BDF/GM
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
7700 RPM
Precision
ISO Class 0
Configuration
Two
Preload
Medium
Static Load Rating
41000 N
Dynamic Load Rating
50000 N
Enclosure
Open
Weight
0.713 kg
Operating Temperature Range
-40 to 120 ºC

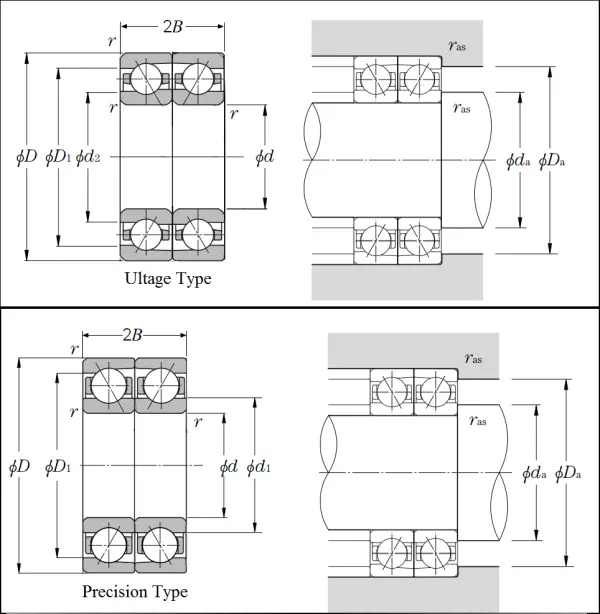

Dimensional Specifications
d
30.000 mm
D
72.000 mm
B
19.000 mm
2B
38.000 mm
r
1.100 mm
r1
0.600 mm
Contact Angle
40 º
da min
37.000 mm
Da max
65.000 mm
ras max
1.000 mm
r1as max
0.600 mm
