NTN 7848CDF/GLP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
High Strength, 2 piece, Machined
Cage Material
Brass
Ball Material
Steel
Precision
ISO Class 5
Configuration
Two
Preload
Light
Static Load Rating
2090 N
Dynamic Load Rating
2050 N
Enclosure
Open
Weight
8.525 kg
Operating Temperature Range
-40 to 120 ºC

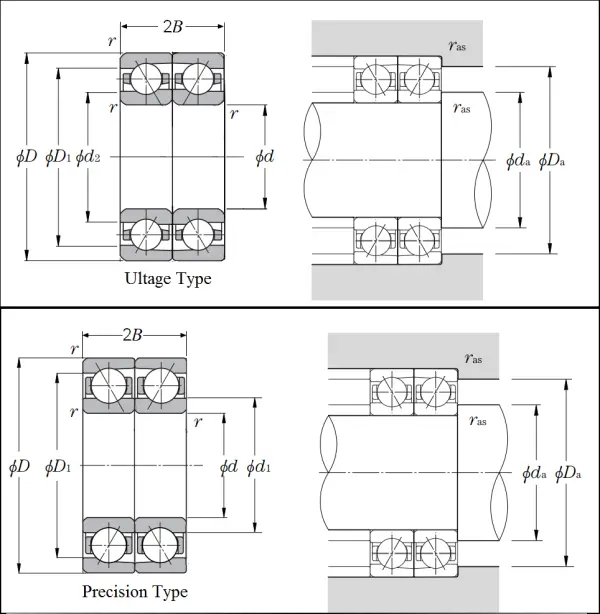

Dimensional Specifications
d
240.000 mm
D
300.000 mm
B
28.000 mm
2B
56.000 mm
Contact Angle
15 º
