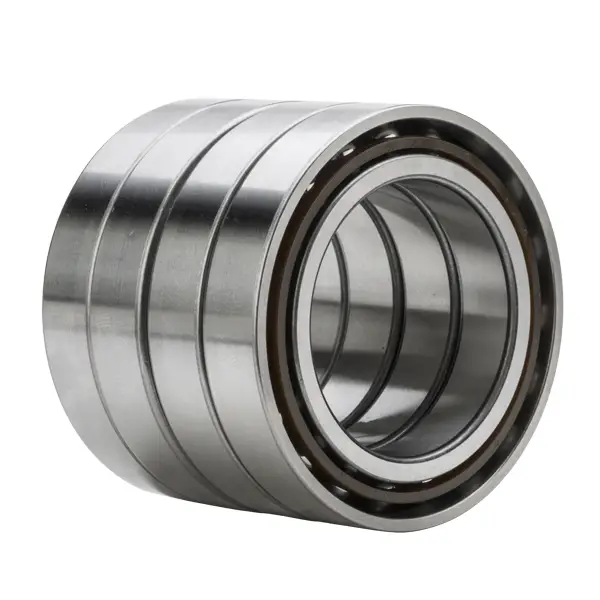

NTN 7908CDTBT/G5P4
Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 4
Configuration
Four
Preload
Special Preload
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

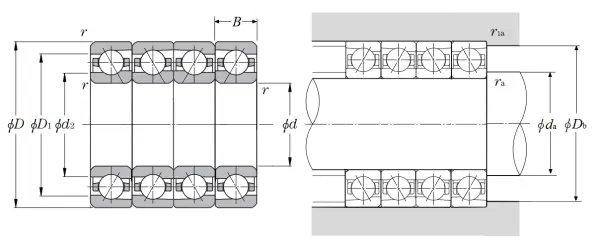

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
Total Width
48.000 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
da min
44.500 mm
Da max
57.500 mm
Db max
59.500 mm
ras max
0.600 mm
r1as max
0.300 mm
