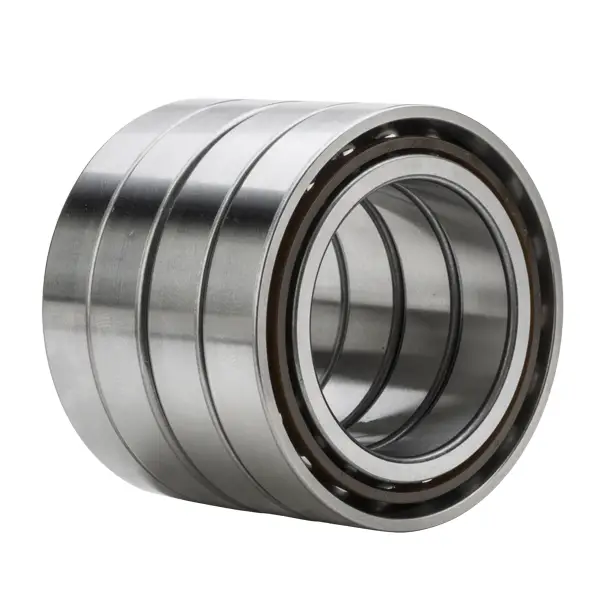

NTN 7908CDTBTUPV2
Multi-Row Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
Special Precision
Configuration
Four
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

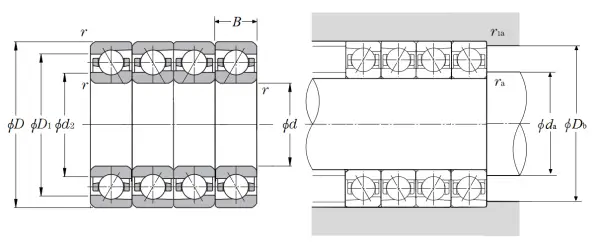

Dimensional Specifications
d
40.000 mm
D
62.000 mm
B
12.000 mm
Total Width
48.000 mm
r
0.600 mm
r1
0.300 mm
Contact Angle
15 º
da min
44.500 mm
Da max
57.500 mm
Db max
59.500 mm
ras max
0.600 mm
r1as max
0.300 mm
