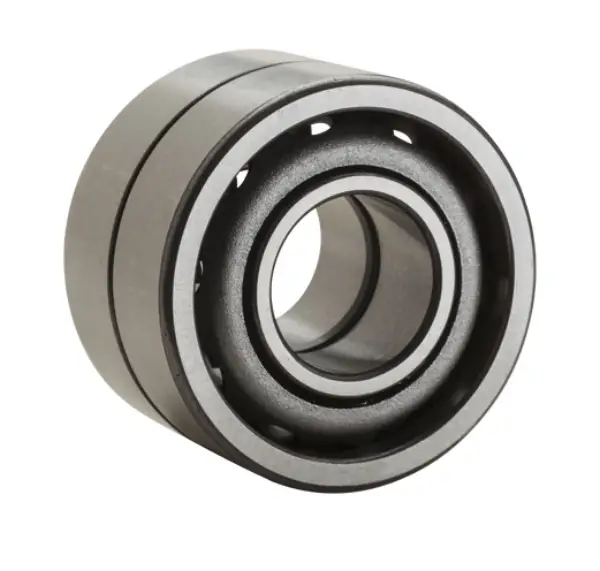

NTN 79M6ADB/GMP5
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Precision
ISO Class 5
Configuration
Two
Preload
Medium
Enclosure
Open
Weight
0.008 kg
Operating Temperature Range
-40 to 120 ºC

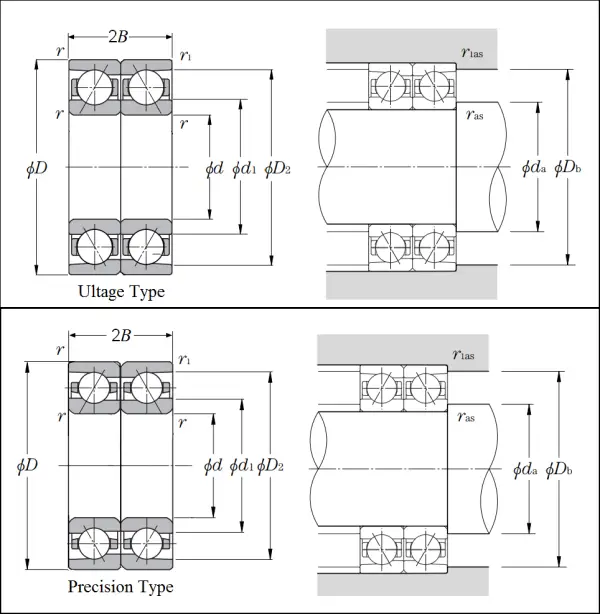

Dimensional Specifications
d
6.000 mm
D
15.000 mm
B
5.000 mm
2B
10.000 mm
d1
9.900 mm
d2
8.400 mm
D1
11.100 mm
D2
12.900 mm
r
0.200 mm
r1
0.100 mm
Contact Angle
25 º
