NTN 79M6ADF/GM
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Configuration
Two
Preload
Medium
Static Load Rating
2090 N
Dynamic Load Rating
2050 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

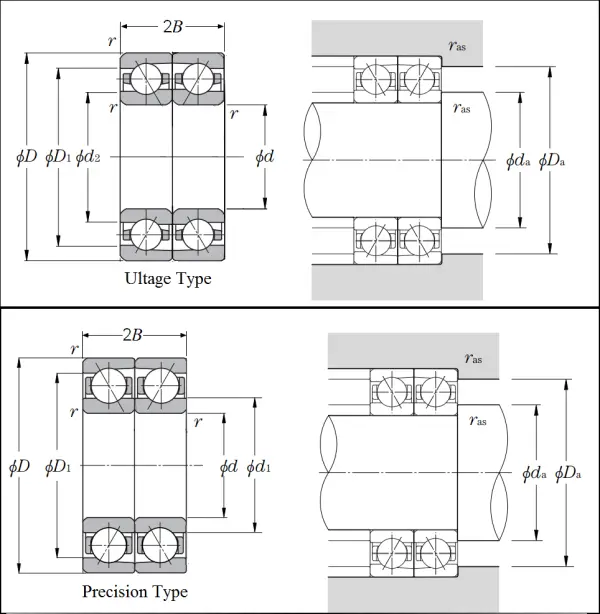

Dimensional Specifications
d
6.000 mm
D
15.000 mm
B
5.000 mm
2B
10.000 mm
d1
9.900 mm
d2
8.400 mm
D1
11.100 mm
D2
12.900 mm
r
0.200 mm
r1
0.100 mm
Contact Angle
25 º
