NTN 79M8ADB/GH
Duplex Angular Contact Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Angular Contact Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Ball Material
Steel
Configuration
Two
Preload
Heavy
Static Load Rating
3250 N
Dynamic Load Rating
2930 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

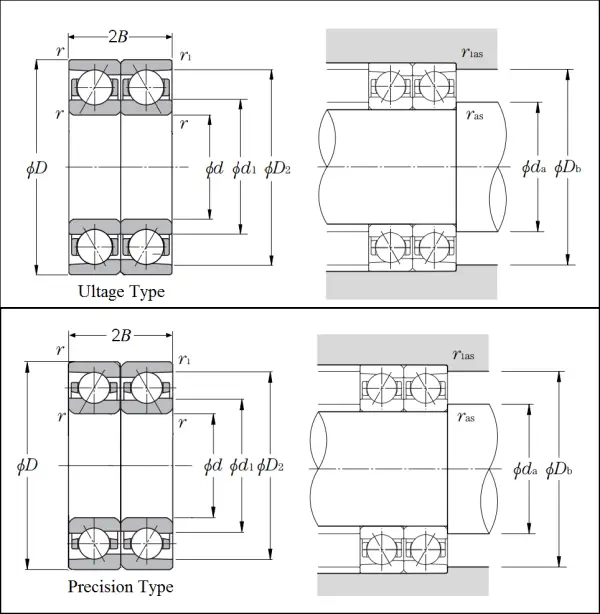

Dimensional Specifications
d
8.000 mm
D
19.000 mm
B
6.000 mm
2B
12.000 mm
d1
12.600 mm
d2
10.900 mm
D1
14.400 mm
D2
16.400 mm
r
0.300 mm
r1
0.150 mm
Contact Angle
25 º
