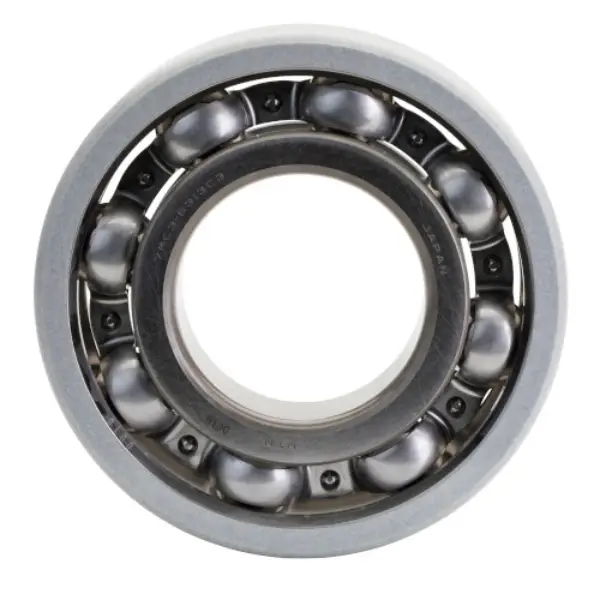

NTN 7MC3-6224C3
Megaohm Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3400 RPM
Limiting Speed - Grease
2900 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
14.4
Radial Internal Clearance
C3
Static Load Rating
131000 N
Dynamic Load Rating
172000 N
Enclosure
Open
Weight
5.260 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
120.000 mm
D
215.000 mm
B
40.000 mm
r
2.100 mm
da min
131.000 mm
da max
143.000 mm
Da max
204.000 mm
ras max
2.000 mm
