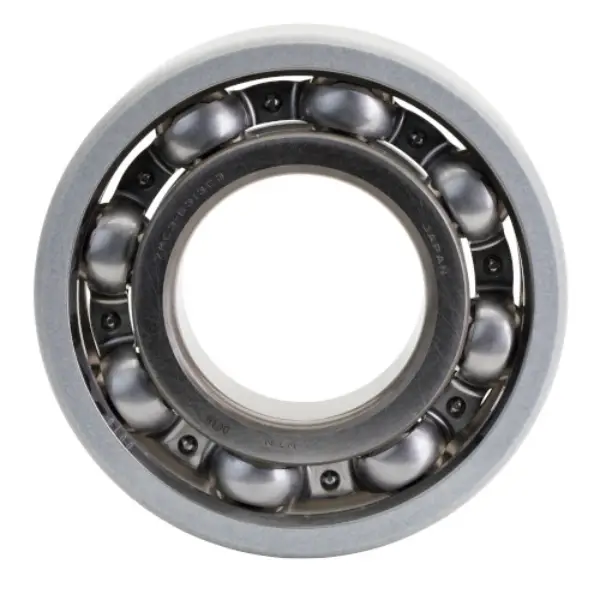

NTN 7MC3-6320C3
Megaohm Ball Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Oil
3700 RPM
Limiting Speed - Grease
3200 RPM
Seal Type
None
Seal Material
None
Precision
Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
C3
Static Load Rating
141000 N
Dynamic Load Rating
192000 N
Enclosure
Open
Weight
7.080 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
100.000 mm
D
215.000 mm
B
47.000 mm
r
3.000 mm
da min
113.000 mm
da max
133.000 mm
Da max
202.000 mm
ras max
2.500 mm
