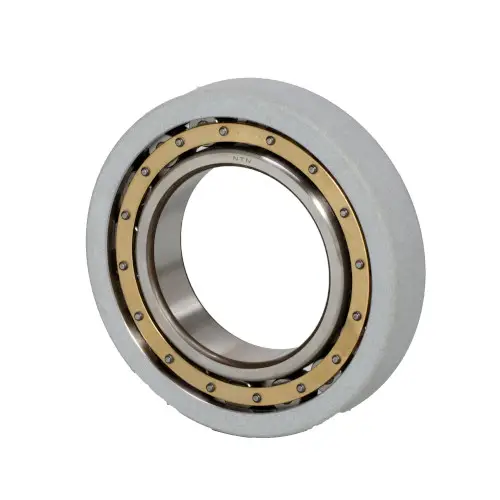

NTN 7MC3-NU319EGRBC3
Megaohm Cylindrical Roller Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Cylindrical Roller Bearing
Bore Type
Round
Material
Hardened Alloy Steel
Cage Material
High Strength Machined Brass Rivetless w/ square holes
Limiting Speed - Oil
3600 RPM
Limiting Speed - Grease
3100 RPM
Ring Separation
Separable Inner Ring
Ring Shoulders
2 Outer Ring
Precision
ISO Class 0
Configuration
One
Tolerance
ISO Class 0 (RBEC 1)
Oil Hole
w/o Oil Hole
Clearance
C3
Static Load Rating
385000 N
Dynamic Load Rating
335000 N
Enclosure
Open
Weight
6.580 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
95.000 mm
D
200.000 mm
B
45.000 mm
Fw
121.500 mm
r
2.500 mm
da min
108.000 mm
Da max
187.000 mm
r1as max
2.500 mm
