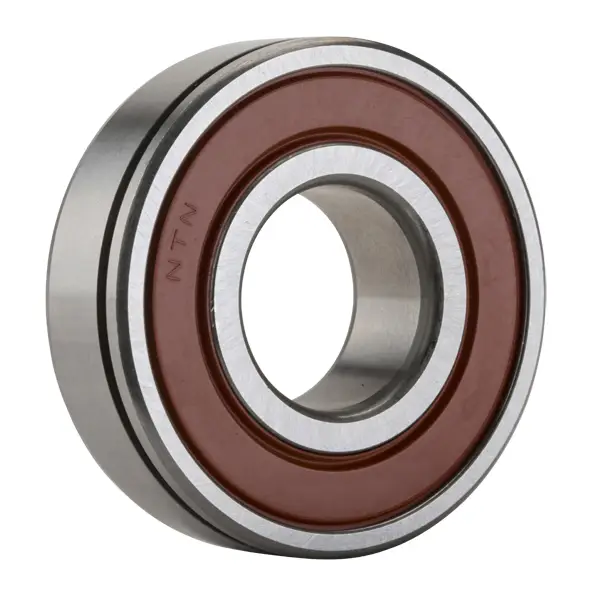

NTN 8013
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
16000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
CN
Precision
ISO Class 0
Static Load Rating
71000 N
Dynamic Load Rating
6100 N
Enclosure
Single Sealed
Weight
0.045 kg
Operating Temperature Range
-40 to 120 ºC

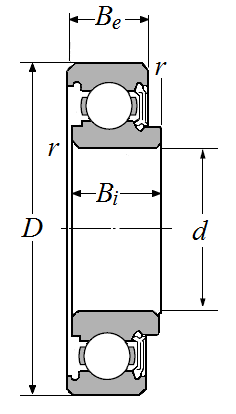

Dimensional Specifications
d
13.000 mm
D
32.000 mm
Be
10.000 mm
Bi
12.192 mm
Total Width
12.700 mm
r
0.600 mm
