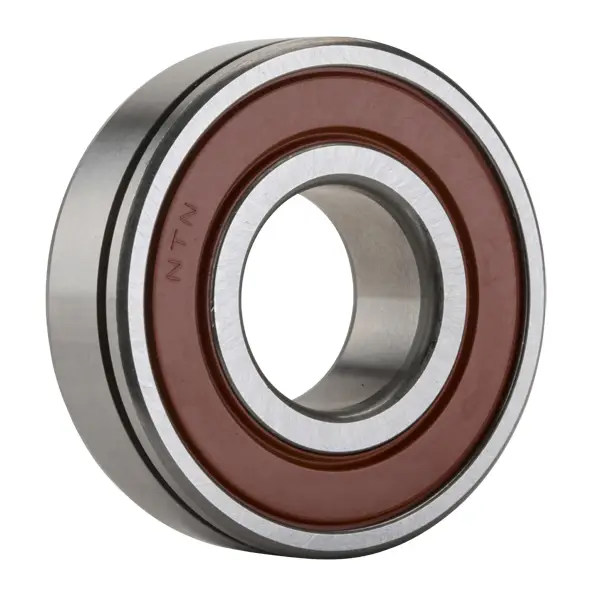

NTN 8016

Single Row Radial Ball Bearing
(BRAND):NTN
(Availability):In Stock

Detailed data of

8016

Technical Specifications

Type Deep Groove Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Limiting Speed - Grease 15000 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Configuration One
Radial Internal Clearance CN
Precision ISO Class 0
Static Load Rating 66500 N
Dynamic Load Rating 7750 N
Enclosure Single Sealed
Operating Temperature Range -40 to 120 ºC

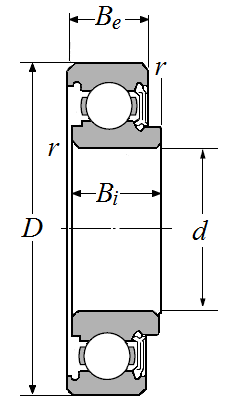

Dimensional Specifications

d 16.000 mm
D 35.000 mm
Be 11.000 mm
Bi 12.192 mm
Total Width 12.700 mm
r 0.600 mm

NTN 8016 Single Row Radial Ball Bearing Overview

The NTN 8016 is part of the Single Row Radial Ball Bearing series and is categorized as a deep groove ball bearing. It has a round bore and a single sealed configuration with a contact seal made from nitrile rubber.

What type of bearing is the NTN 8016?

The NTN 8016 is a single row radial deep groove ball bearing with CN radial internal clearance and ISO Class 0 precision.

8016 Construction and Technical Details

  • Material: High carbon chrome steel
  • Cage: Pressed steel cage
  • Balls: Steel balls
  • Seal: Contact seal in nitrile rubber
  • Enclosure: Single sealed
  • Operating temperature range: -40 to 120 ºC
  • Limiting speed with grease: 15,000 RPM

What load ratings are listed for the 8016?

The supplied specifications list a static load rating of 66,500 N and a dynamic load rating of 7,750 N.

8016 Dimensional Specifications

  1. Bore diameter (d): 16.000 mm
  2. Outside diameter (D): 35.000 mm
  3. Be: 11.000 mm
  4. Bi: 12.192 mm
  5. Total width: 12.700 mm
  6. Fillet radius (r): 0.600 mm

What are the bearing's main boundary dimensions?

The NTN 8016 has a 16.000 mm bore, a 35.000 mm outside diameter, and a total width of 12.700 mm.
