NTN 8026C3

Single Row Radial Ball Bearing
(BRAND):NTN
(Availability):In Stock

Detailed data of

8026C3

Technical Specifications

Type Deep Groove Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Limiting Speed - Grease 8900 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Configuration One
Radial Internal Clearance C3
Precision ISO Class 0
Static Load Rating 39500 N
Dynamic Load Rating 14000 N
Enclosure Single Sealed
Operating Temperature Range -40 to 120 ºC

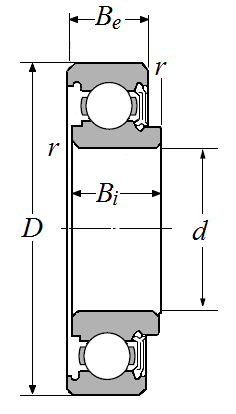

Dimensional Specifications

d 26.000 mm
D 52.000 mm
Be 15.000 mm
Bi 15.240 mm
Total Width 15.875 mm
r 1.000 mm

NTN 8026C3 Single Row Radial Ball Bearing Overview

What type of bearing is the NTN 8026C3?

The NTN 8026C3 is listed in the Single Row Radial Ball Bearing product series and is specified as a deep groove ball bearing with a round bore. It uses a pressed steel cage, steel balls, and a single contact seal made of nitrile rubber.

8026C3 Dimensions and Construction

What dimensions and materials are specified for the 8026C3?

The bearing has a bore of 26.000 mm, an outside diameter of 52.000 mm, and a total width of 15.875 mm. Additional specified dimensions include Be 15.000 mm, Bi 15.240 mm, and r 1.000 mm.

  • Bearing material: High carbon chrome steel
  • Cage: Pressed steel cage
  • Ball material: Steel
  • Seal material: Nitrile rubber
  • Enclosure: Single sealed

8026C3 Technical Performance Details

What ratings and operating details are provided?

The 8026C3 has C3 radial internal clearance and ISO Class 0 precision. The supplied data lists a static load rating of 39500 N, a dynamic load rating of 14000 N, and a grease limiting speed of 8900 RPM. The stated operating temperature range is -40 to 120 ºC.

  1. Configuration: One radial internal clearance, C3
  2. Precision: ISO Class 0
  3. Seal type: Contact seal
  4. Limiting speed with grease: 8900 RPM
