NTN 8513
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
3600 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
CN
Precision
ISO Class 0
Static Load Rating
16000 N
Dynamic Load Rating
57500 N
Enclosure
Single Sealed
Operating Temperature Range
-40 to 120 ºC

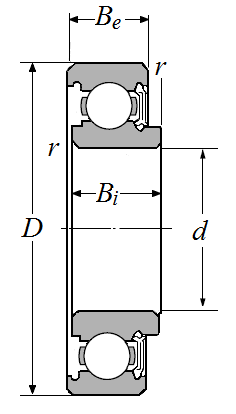

Dimensional Specifications
d
65.000 mm
D
120.000 mm
Be
26.000 mm
Bi
31.000 mm
Total Width
31.000 mm
r
1.500 mm
