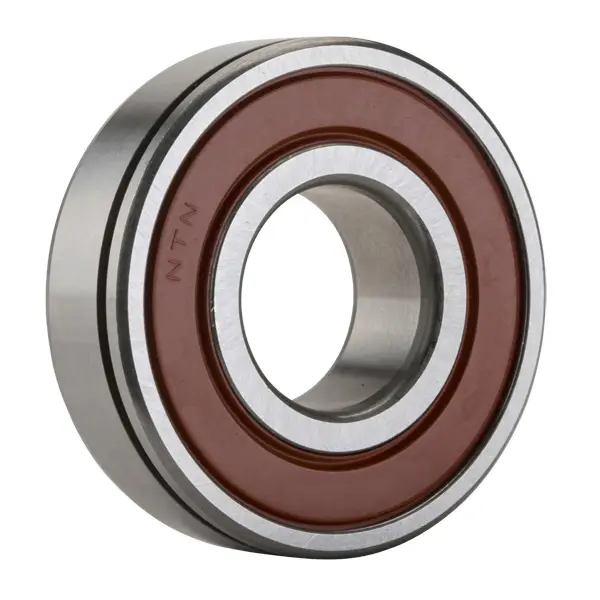

NTN 8603C3

Single Row Radial Ball Bearing
(BRAND):NTN
(Availability):In Stock

Detailed data of

8603C3

Technical Specifications

Type Deep Groove Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Limiting Speed - Grease 11000 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Configuration One
Radial Internal Clearance C3
Precision ISO Class 0
Static Load Rating 49000 N
Dynamic Load Rating 13600 N
Enclosure Single Sealed
Operating Temperature Range -40 to 120 ºC

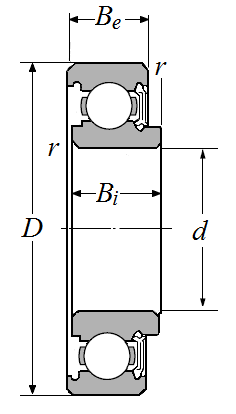

Dimensional Specifications

d 17.000 mm
D 47.000 mm
Be 14.000 mm
Bi 15.000 mm
Total Width 16.000 mm
r 1.000 mm

NTN 8603C3 Single Row Radial Ball Bearing Overview

The NTN 8603C3 is part of the Single Row Radial Ball Bearing series and is listed under deep groove ball bearings. It uses a round bore, C3 radial internal clearance, ISO Class 0 precision, and a single sealed configuration.

What are the basic bearing details?

The model is 8603C3, the brand is NTN, and the bearing type is Deep Groove Ball Bearing. The seal is a contact seal made from nitrile rubber, while the enclosure configuration is listed as single sealed.

8603C3 Construction and Performance Specifications

The bearing is specified with high carbon chrome steel construction, a pressed steel cage, and steel balls. Its technical data includes a static load rating of 49000 N, a dynamic load rating of 13600 N, and a grease limiting speed of 11000 RPM.

What materials and operating conditions are specified?

  • Bearing material: High carbon chrome steel
  • Cage: Pressed steel cage
  • Ball material: Steel
  • Seal material: Nitrile rubber
  • Operating temperature range: -40 to 120 ºC

8603C3 Dimensional and Reference Information

The supplied dimensional specifications list a bore diameter of 17.000 mm, an outside diameter of 47.000 mm, and a total width of 16.000 mm. Additional width and fillet dimensions are provided for reference.

What dimensions are included in the product data?

  1. d (bore): 17.000 mm
  2. D (outside diameter): 47.000 mm
  3. Be: 14.000 mm
  4. Bi: 15.000 mm
  5. Total width: 16.000 mm
  6. r: 1.000 mm
