(BRAND): NTN
(Availability):In Stock

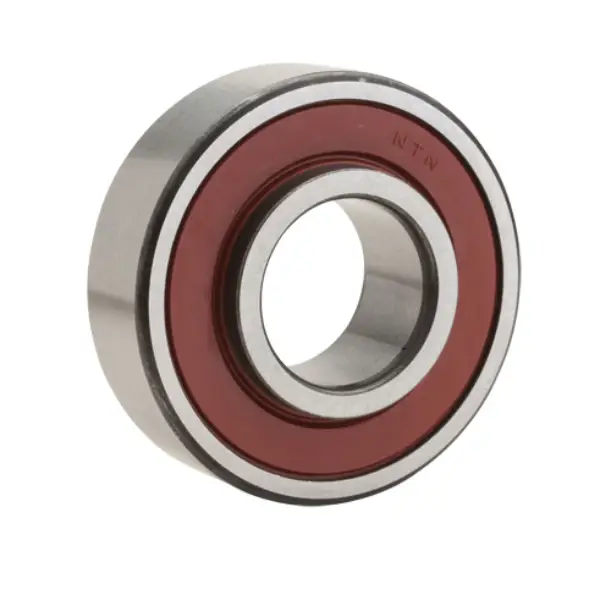

Detailed data of 87035 Single Row Radial Ball Bearing

Technical Specifications

Type Deep Groove Ball Bearing
Bore Type Round
Material High Carbon Chrome Steel
Cage Type Pressed
Cage Material Steel
Ball Material Steel
Limiting Speed - Grease 30000 RPM
Seal Type Contact
Seal Material Nitrile Rubber
Configuration One
Radial Internal Clearance CN
Precision ISO Class 0
Static Load Rating 890 N
Dynamic Load Rating 2340 N
Enclosure Shielded & Sealed
Operating Temperature Range -40 to 120 ºC

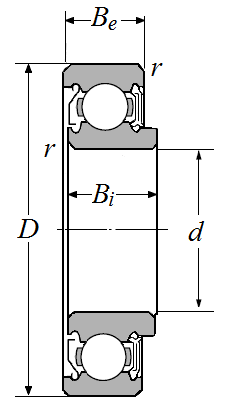

Dimensional Specifications

d 5.000 mm
D 19.000 mm
Be 9.804 mm
Bi 9.804 mm
Total Width 10.319 mm
r 0.300 mm

NTN 87035 Single Row Radial Ball Bearing Overview

The NTN 87035 is part of the Single Row Radial Ball Bearing series and is categorized as a deep groove ball bearing. It uses a round bore, high carbon chrome steel construction, a pressed steel cage, and steel balls.

What type of bearing is the NTN 87035?

The 87035 is a single row radial deep groove ball bearing. Its listed configuration includes one radial row, CN internal clearance, and ISO Class 0 precision.

NTN 87035 Dimensions and Technical Specifications

  • Bore diameter (d): 5.000 mm
  • Outside diameter (D): 19.000 mm
  • Dimension Be: 9.804 mm
  • Dimension Bi: 9.804 mm
  • Total width: 10.319 mm
  • Fillet radius (r): 0.300 mm

What load and speed ratings are listed for the 87035?

The supplied data lists a static load rating of 890 N, a dynamic load rating of 2340 N, and a grease limiting speed of 30,000 RPM. These values should be compared with the intended equipment requirements.

NTN 87035 Seal, Material, and Operating Details

The bearing is listed with contact seals made from nitrile rubber and an enclosure description of shielded and sealed. Its stated operating temperature range is -40 to 120 ºC.

What materials and seal features does the 87035 use?

The bearing material is high carbon chrome steel, with a pressed steel cage and steel balls. The seal type is a contact seal using nitrile rubber, according to the supplied product data.
