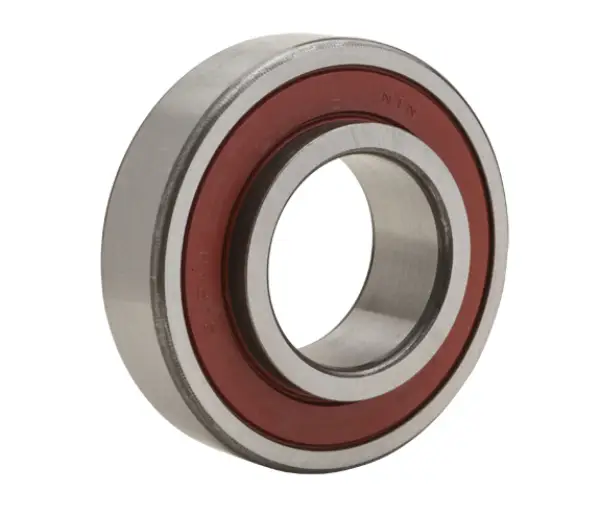

NTN 88503
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
12000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
CN
Precision
ISO Class 0
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Weight
0.071 kg
Operating Temperature Range
-40 to 120 ºC

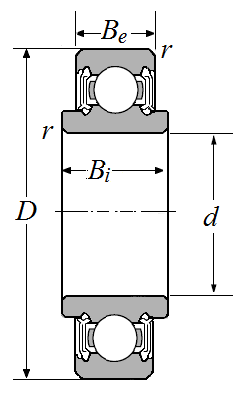

Dimensional Specifications
d
17.000 mm
D
40.000 mm
Be
12.000 mm
Bi
16.601 mm
Total Width
16.601 mm
r
0.600 mm
