NTN 88513C3
Single Row Radial Ball Bearing
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Deep Groove Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Ball Material
Steel
Limiting Speed - Grease
3600 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Configuration
One
Radial Internal Clearance
C3
Precision
ISO Class 0
Static Load Rating
40000 N
Dynamic Load Rating
57500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

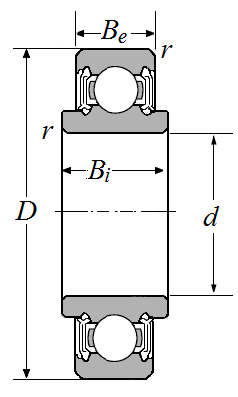

Dimensional Specifications
d
65.000 mm
D
120.000 mm
Be
26.000 mm
Bi
36.000 mm
Total Width
36.000 mm
r
1.500 mm
