NTN A-JEL201-008D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Limiting Speed - Grease
11000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Basic Outer Ring
201
Radial Internal Clearance
CN
Static Load Rating
4580 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

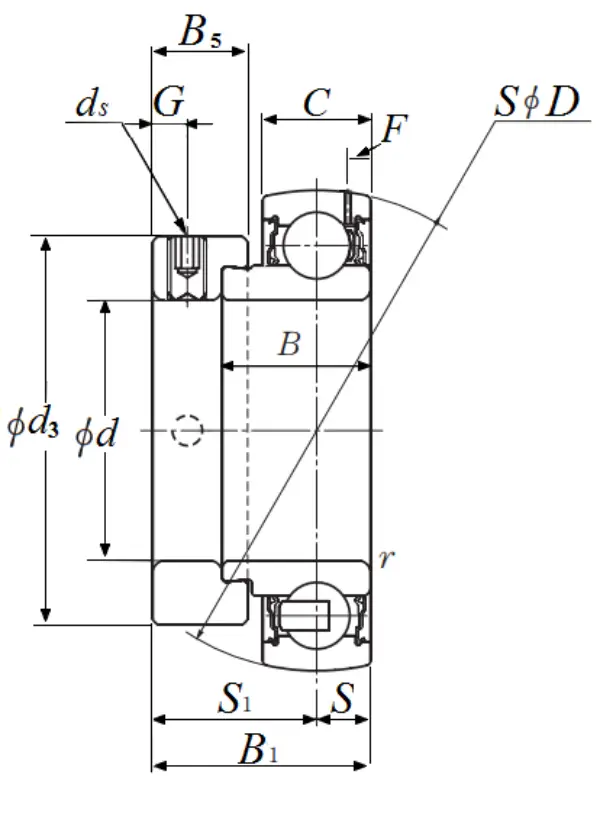

Dimensional Specifications
d
12.700 mm
D
40.000 mm
C
13.000 mm
B
19.000 mm
B1
28.600 mm
r
0.600 mm
ds
1/4-28 UNF
G
4.800 mm
d3
29.000 mm
B5
13.600 mm
S1
22.100 mm
S
6.500 mm
F
2.6 mm
