NTN A-JEL202-010D1M
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL202-010
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

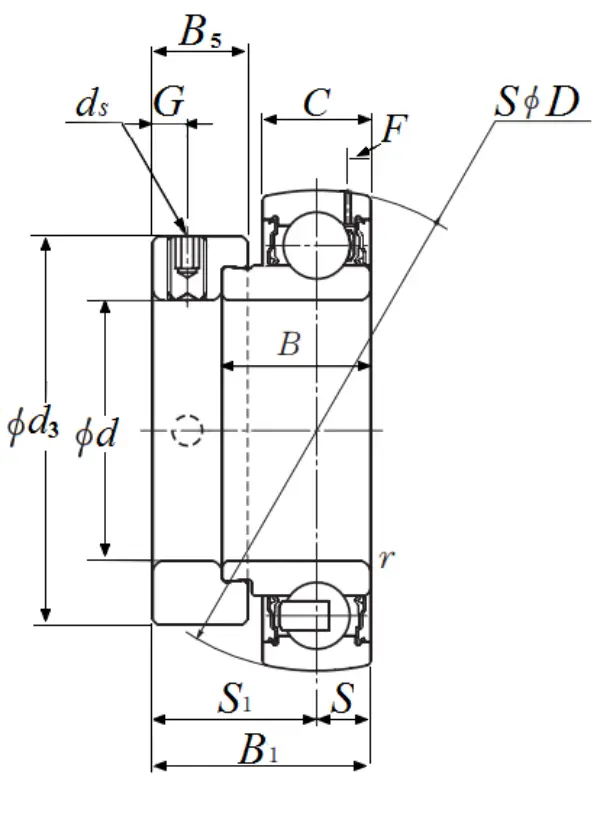

Dimensional Specifications
d
15.875 mm
D
40.000 mm
C
13.000 mm
B
18.999 mm
B1
28.600 mm
r
0.610 mm
ds
1/4-28 UNF
G
4.801 mm
d3
29.007 mm
B5
13.589 mm
S1
22.098 mm
S
6.502 mm
