NTN A-JEL204-012D1M
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL204-012
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

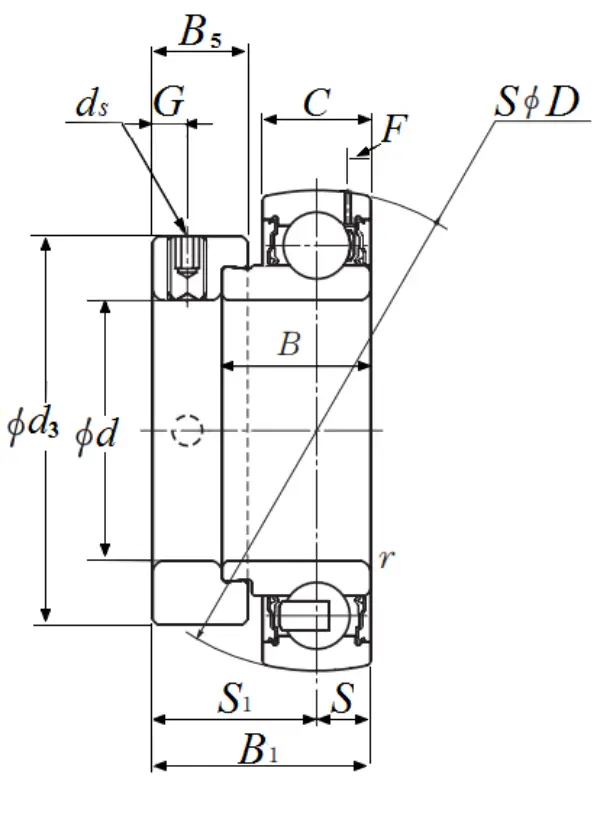

Dimensional Specifications
d
19.050 mm
D
47.000 mm
C
15.001 mm
B
21.501 mm
B1
30.988 mm
r
0.991 mm
ds
1/4-28 UNF
G
4.801 mm
d3
32.995 mm
B5
13.487 mm
S1
23.495 mm
S
7.493 mm
