NTN A-JEL205-100D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Limiting Speed - Grease
5900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Lubrication
Relubricatable
Basic Outer Ring
205
Radial Internal Clearance
CN
Static Load Rating
7850 N
Dynamic Load Rating
14000 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

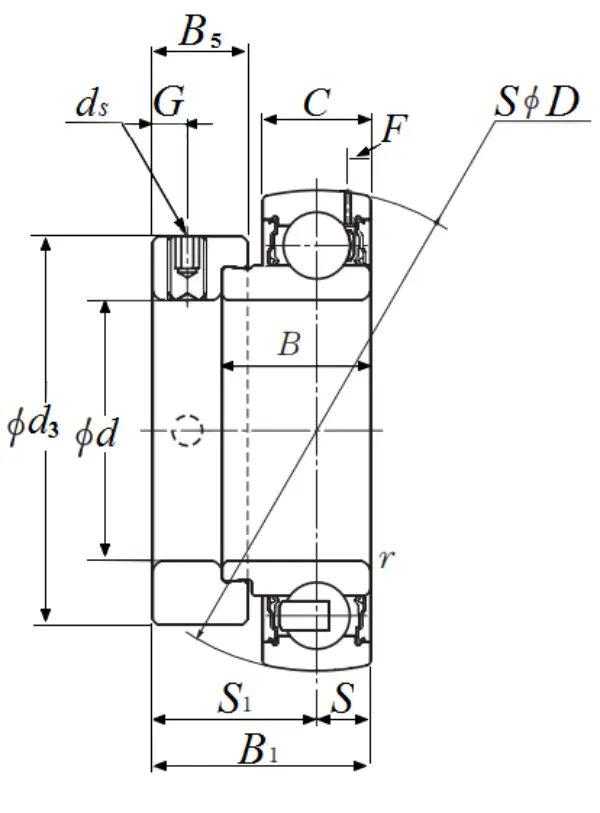

Dimensional Specifications
d
25.400 mm
D
52.000 mm
C
15.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
ds
1/4-28 UNF
G
4.800 mm
d3
38.000 mm
B5
13.500 mm
S1
23.500 mm
S
7.500 mm
F
3.5 mm
