NTN A-JEL206-102D1M
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL206-102
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

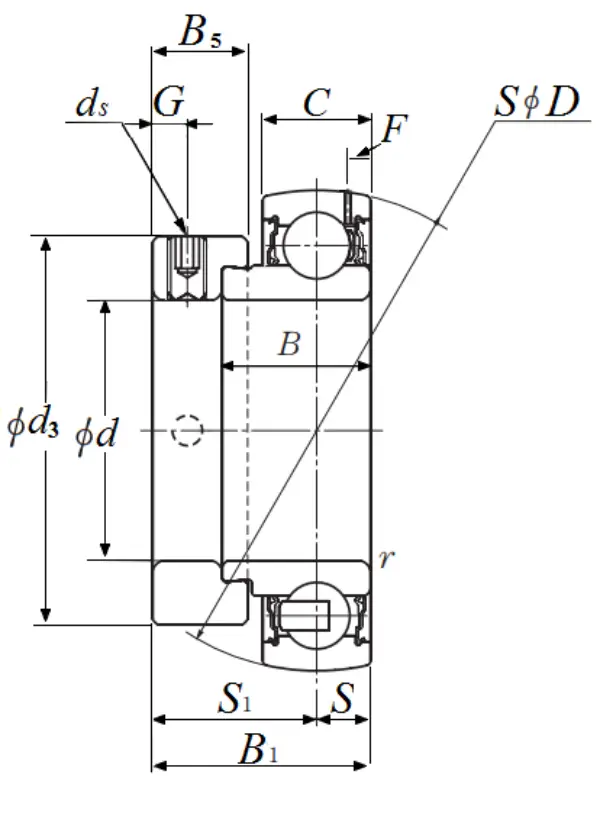

Dimensional Specifications
d
28.575 mm
D
61.999 mm
C
18.001 mm
B
23.800 mm
B1
35.712 mm
r
0.991 mm
ds
5/16-24 UNF
G
5.994 mm
d3
44.501 mm
B5
15.875 mm
S1
26.695 mm
S
8.992 mm
