NTN A-JEL207-106D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL207-106
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
2.430 kg
Operating Temperature Range
-40 to 120 ºC

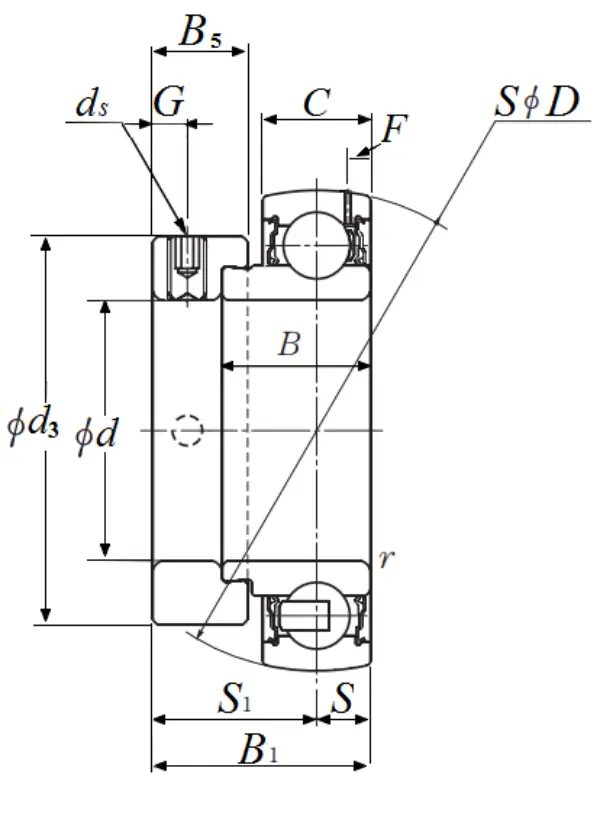

Dimensional Specifications
d
34.925 mm
D
72.000 mm
C
8.000 mm
B
8.000 mm
B1
38.887 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.807 mm
d3
55.499 mm
B5
17.501 mm
S1
29.388 mm
S
9.500 mm
Specifications
Radial Dynamic Load Rating
25700 N
Radial Static Load Rating
15300 N
