NTN A-JEL207-107D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL207-107
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

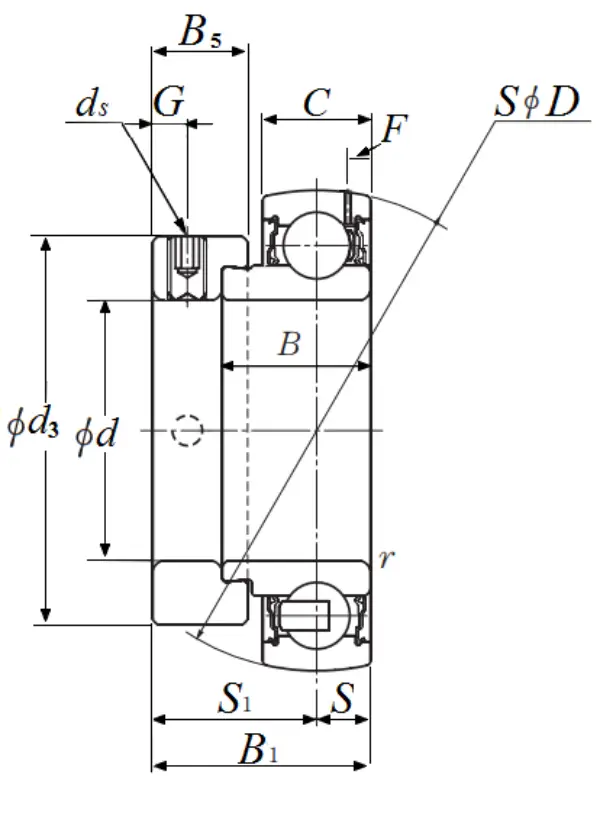

Dimensional Specifications
d
36.513 mm
D
71.999 mm
C
18.999 mm
B
25.400 mm
B1
38.887 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.807 mm
d3
55.499 mm
B5
17.501 mm
S1
29.388 mm
S
9.500 mm
