NTN A-JEL208-108D1M
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Black Oxide
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL208-108
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

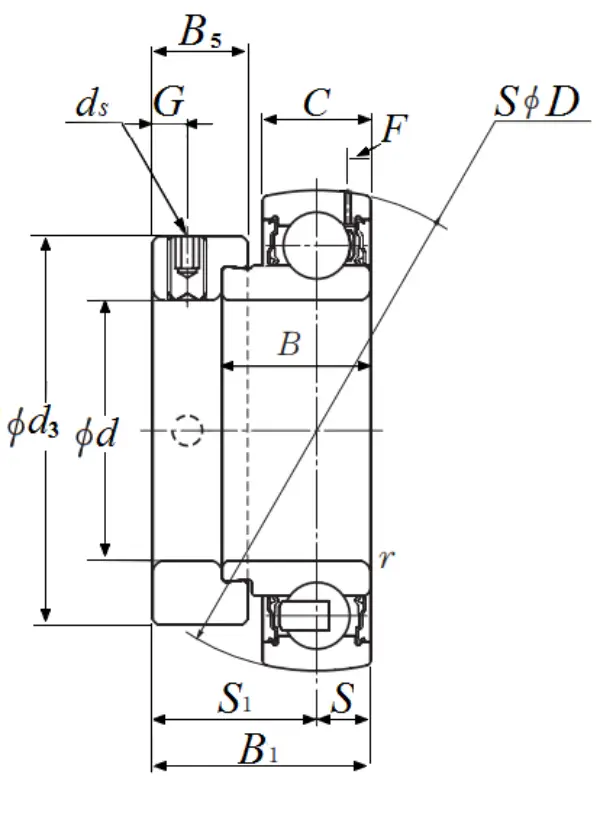

Dimensional Specifications
d
38.100 mm
D
80.000 mm
C
21.999 mm
B
30.201 mm
B1
43.688 mm
r
1.499 mm
ds
3/8-24 UNF
G
6.807 mm
d3
59.995 mm
B5
18.288 mm
S1
32.690 mm
S
10.998 mm
