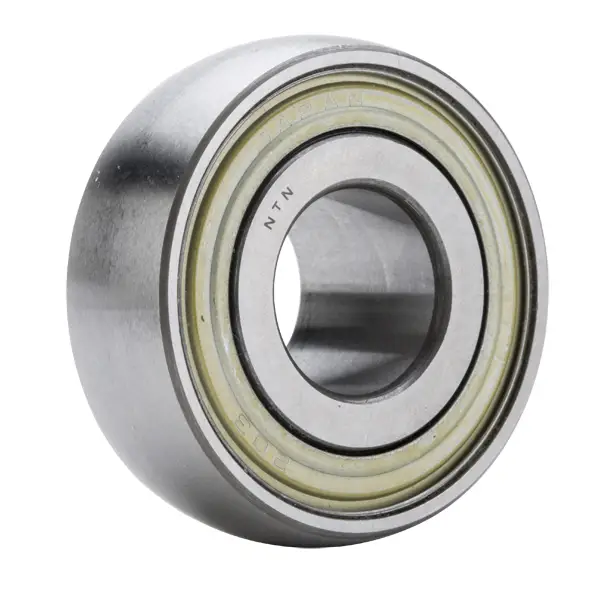

NTN A-RL207-106D1C3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Lubrication
Outer Ring
Basic Outer Ring
207
Radial Internal Clearance
CN
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
2.000 kg
Operating Temperature Range
-40 to 120 ºC

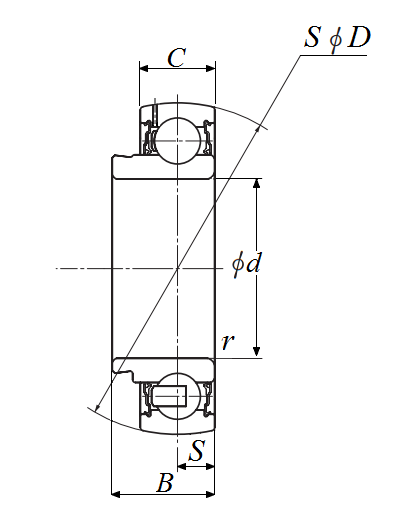

Dimensional Specifications
d
34.925 mm
D
72.000 mm
C
19.000 mm
B
37.600 mm
B1
51.100 mm
r
1.500 mm
S
18.8 mm
Specifications
Radial Dynamic Load Rating
25700 N
Lubrication
Outer Ring
Radial Static Load Rating
15300 N
