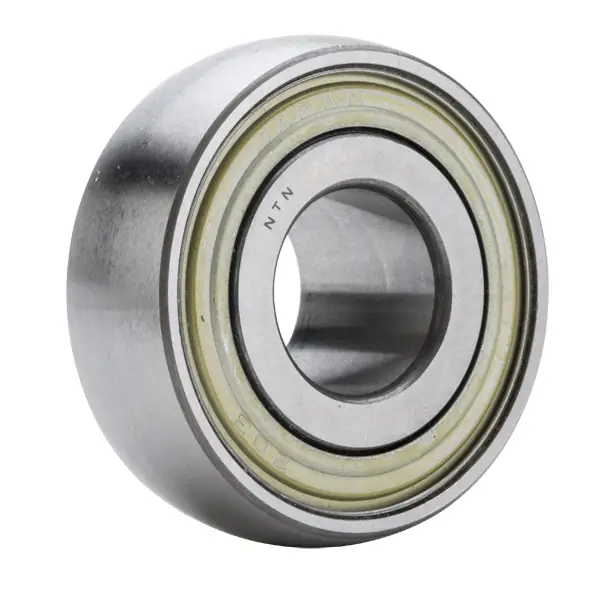

NTN A-UL308-108D1C3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Heavy Duty
Configuration
One
Locking Device
None
Lubrication
Relubricatable
Basic Outer Ring
308
Radial Internal Clearance
CN
Static Load Rating
24000 N
Dynamic Load Rating
40500 N
Enclosure
Double Sealed
Weight
1.170 kg
Operating Temperature Range
-40 to 120 ºC

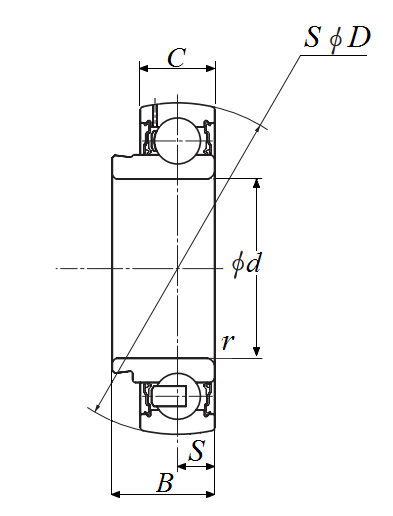

Dimensional Specifications
d
38.100 mm
D
90.000 mm
C
27.000 mm
B
41.300 mm
B1
57.100 mm
r
2.000 mm
S
19.800 mm
