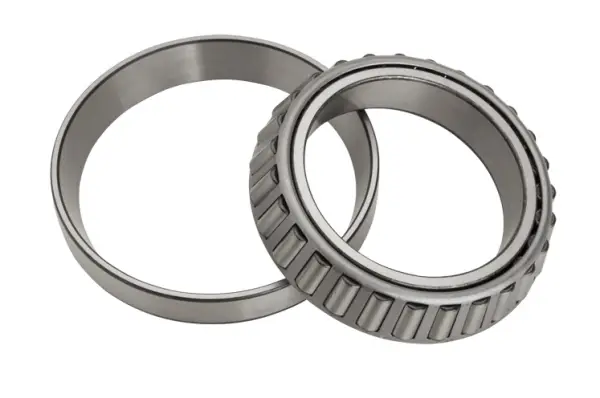

NTN A2047/A2126
Tapered Roller Set - Inch Series and J Series
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Tapered Roller Bearing
Bore Type
Round
Material
Case Carburized Steel
Style
Cone & Cup
Precision Rating
Class 4
Cone Number
A2047
Cup Number
A2126
Configuration
One
Lubrication
w/o Oil Hole
e (Axial Load Factor)
0.41
Y2 (Axial Load Factor)
1.48
Static Load Rating
9430 N
Dynamic Load Rating
11900 N
Enclosure
Open
Operating Temperature Range
-40 to 120 ºC

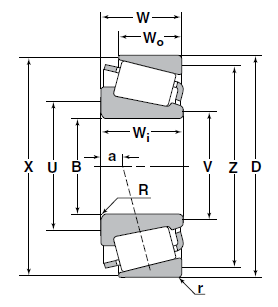

Dimensional Specifications
B
11.986 mm
D
31.991 mm
Wo
7.938 mm
Wi
10.785 mm
W
10.008 mm
r
1.300 mm
R
0.8 mm
a (Effective Load Center)
-3.000 mm
