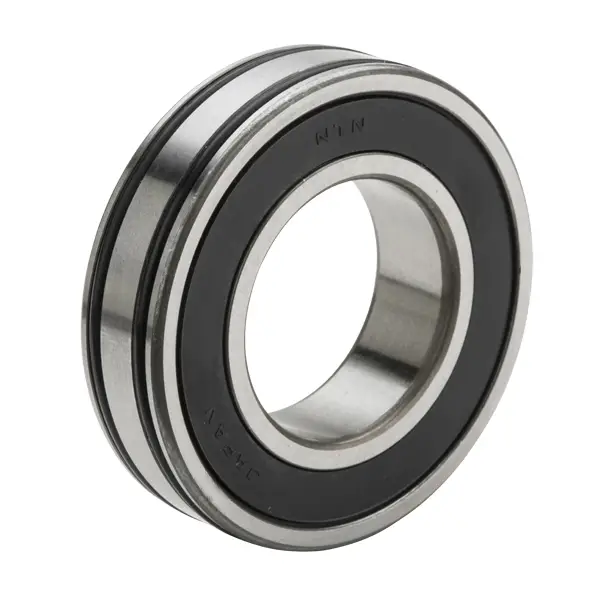

NTN AC-6005T2X3LLBC3P5
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Fiber Glass Reinforced
Cage Material
Nylon
Limiting Speed - Grease
15000 RPM
Precision
Class 5
Configuration
One
Factor
14.5
Radial Internal Clearance
C3
Static Load Rating
5850 N
Dynamic Load Rating
11200 N
Enclosure
Double Sealed
Weight
0.078 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.000 mm
D
47.000 mm
B
12.000 mm
r
0.600 mm
da min
29.000 mm
da max
30.500 mm
Da max
43.000 mm
ras max
0.600 mm
