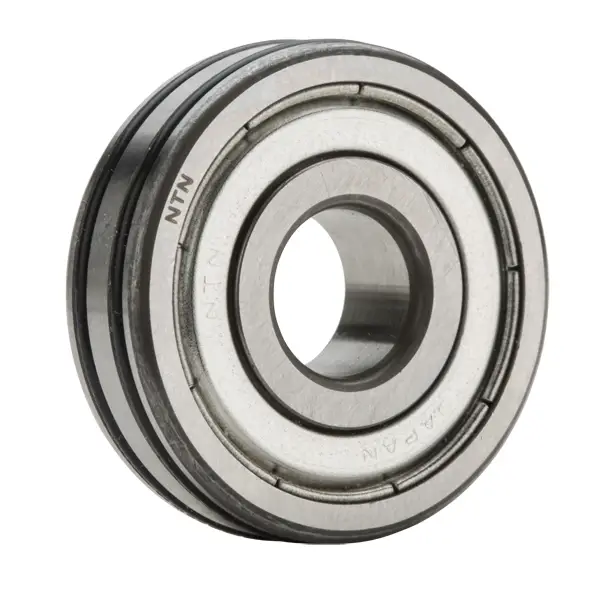

NTN AC-6006ZZ
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
13000 RPM
Precision
Class 0
Configuration
One
Factor
14.8
Radial Internal Clearance
CN
Static Load Rating
8300 N
Dynamic Load Rating
14700 N
Enclosure
Double Shielded
Weight
0.109 kg
Operating Temperature Range
-40 to 120 ºC

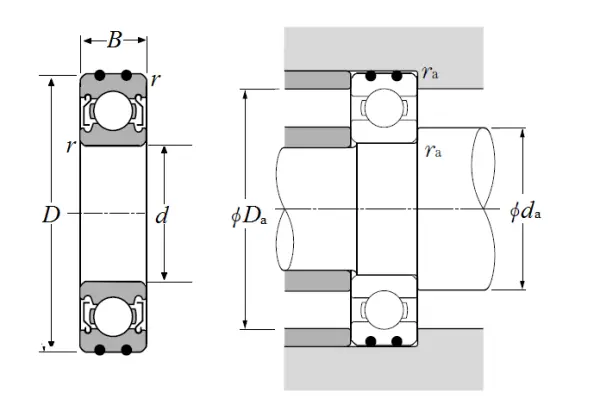

Dimensional Specifications
d
30.000 mm
D
55.000 mm
B
13.000 mm
r
1.000 mm
da min
35.000 mm
da max
37.000 mm
Da max
50.000 mm
ras max
1.000 mm
