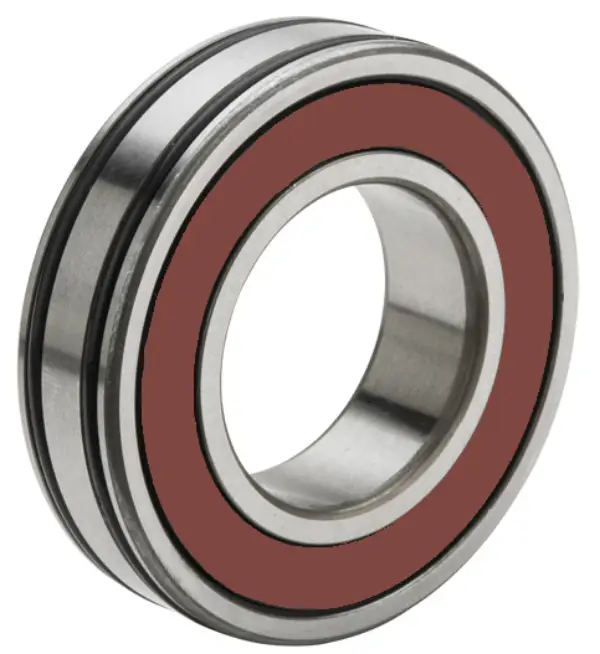

NTN AC-6201LLUC3
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
16000 RPM
Precision
Class 0
Configuration
One
Factor
12.7
Radial Internal Clearance
C3
Static Load Rating
2750 N
Dynamic Load Rating
6750 N
Enclosure
Double Sealed
Weight
0.037 kg
Operating Temperature Range
-40 to 120 ºC

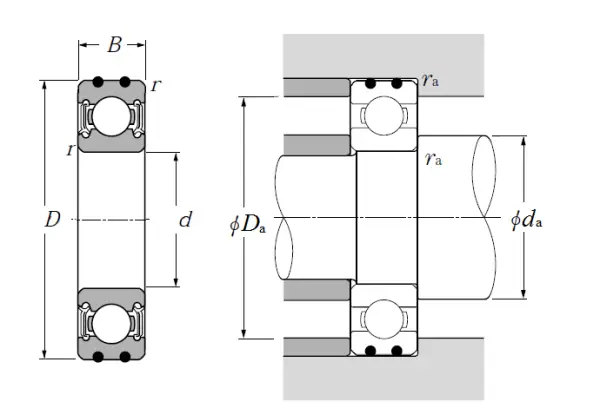

Dimensional Specifications
d
12.000 mm
D
32.000 mm
B
10.000 mm
r
0.600 mm
da min
16.000 mm
da max
17.000 mm
Da max
28.000 mm
ras max
0.600 mm
