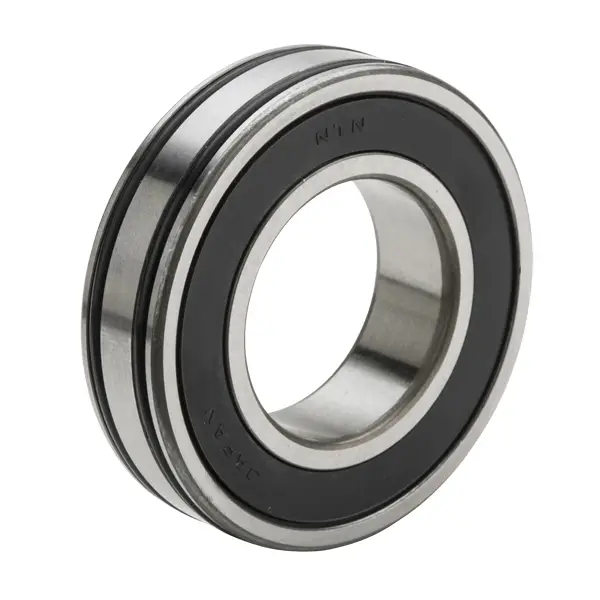

NTN AC-6206LLB
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
11000 RPM
Precision
Class 0
Configuration
One
Factor
13.8
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
21600 N
Enclosure
Double Sealed
Weight
0.192 kg
Operating Temperature Range
-40 to 120 ºC

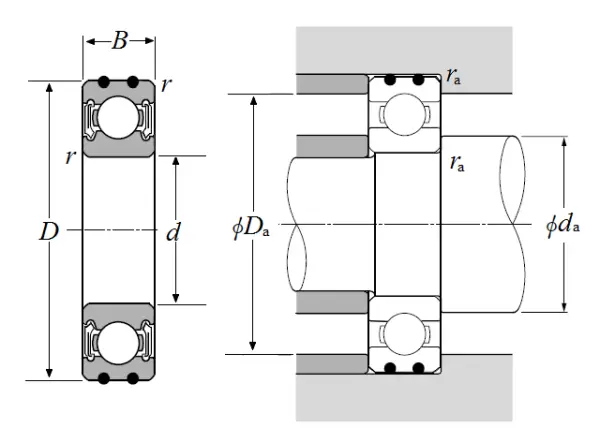

Dimensional Specifications
d
30.000 mm
D
62.000 mm
B
16.000 mm
r
1.000 mm
da min
35.000 mm
da max
39.000 mm
Da max
57.000 mm
ras max
1.000 mm
