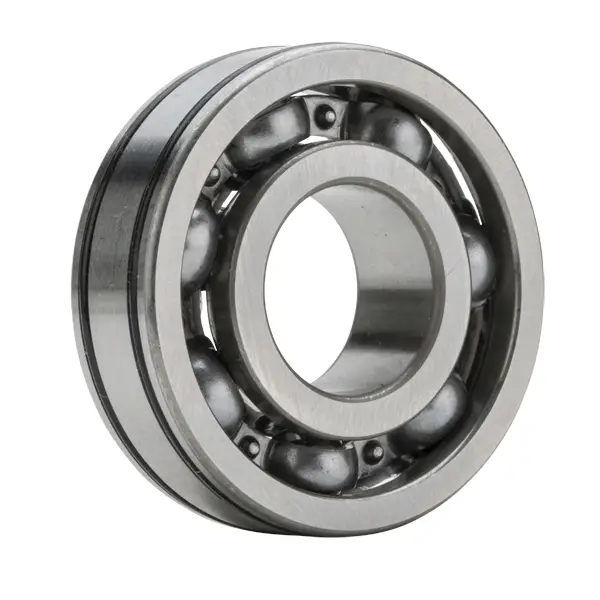

NTN AC-6208
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
10000 RPM
Limiting Speed - Grease
8700 RPM
Precision
Class 0
Configuration
One
Factor
14.0
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
32500 N
Enclosure
Open
Weight
0.352 kg
Operating Temperature Range
-40 to 120 ºC

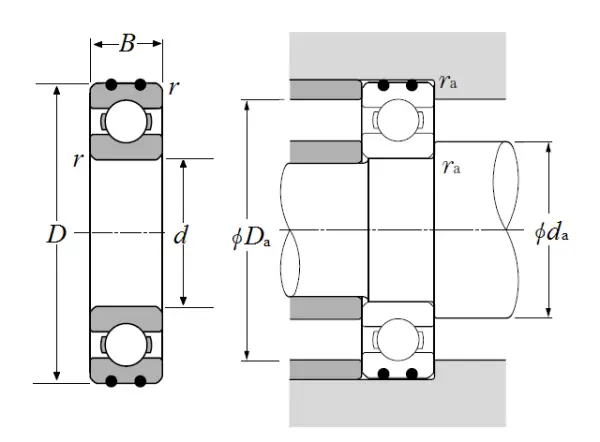

Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
r
1.100 mm
da min
46.500 mm
da max
51.000 mm
Da max
73.500 mm
ras max
1.000 mm
