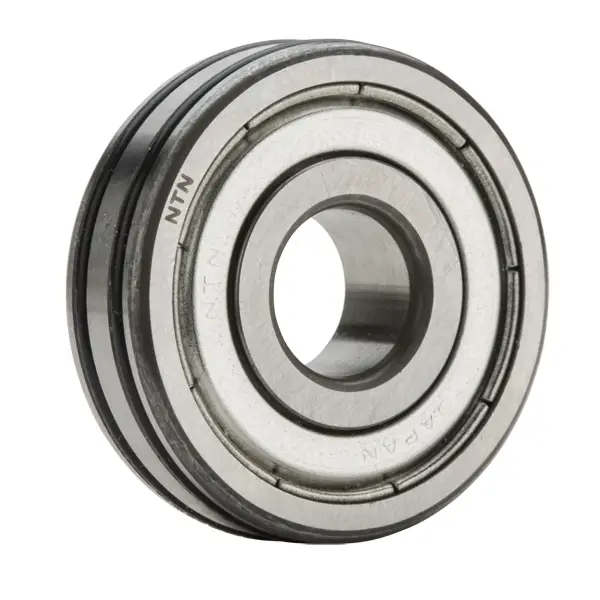

NTN AC-6208ZZCM
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Riveted Steel
Cage Material
Steel
Limiting Speed - Grease
8700 RPM
Precision
P0
Configuration
One
Factor
13.8
Radial Internal Clearance
CM
Static Load Rating
17800 N
Dynamic Load Rating
32500 N
Enclosure
Double Shielded
Weight
0.353 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
40.000 mm
D
80.000 mm
B
18.000 mm
r
1.100 mm
da min
35.000 mm
da max
39.000 mm
Da max
57.000 mm
ras max
1.100 mm
