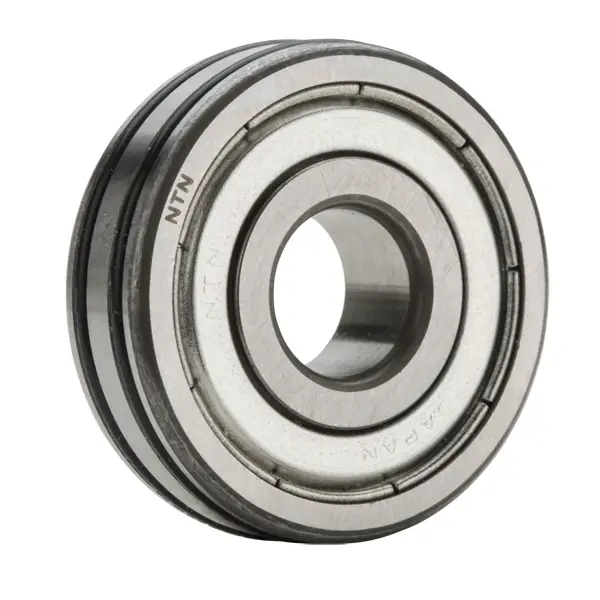

NTN AC-6301ZZC3
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
20000 RPM
Precision
Class 0
Configuration
One
Factor
11.1
Radial Internal Clearance
C3
Static Load Rating
4200 N
Dynamic Load Rating
10800 N
Enclosure
Double Shielded
Weight
0.060 kg
Operating Temperature Range
-40 to 120 ºC

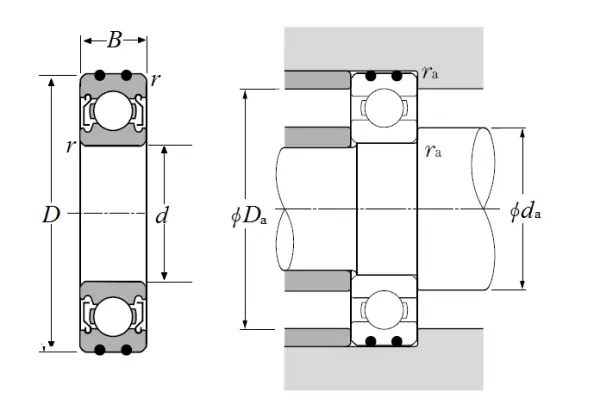

Dimensional Specifications
d
12.000 mm
D
37.000 mm
B
12.000 mm
r
1.000 mm
da min
17.000 mm
da max
18.500 mm
Da max
32.000 mm
ras max
1.000 mm
