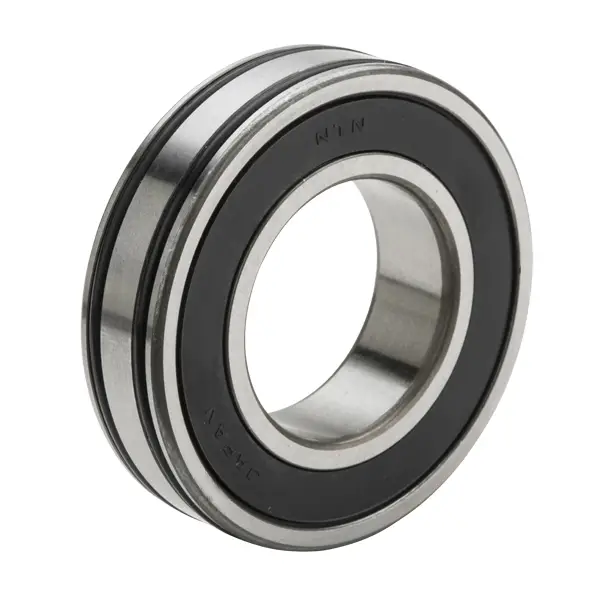

NTN AC-6306LLBC3
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
10000 RPM
Precision
Class 0
Configuration
One
Factor
13.3
Radial Internal Clearance
C3
Static Load Rating
15000 N
Dynamic Load Rating
29500 N
Enclosure
Double Sealed
Weight
0.334 kg
Operating Temperature Range
-40 to 120 ºC

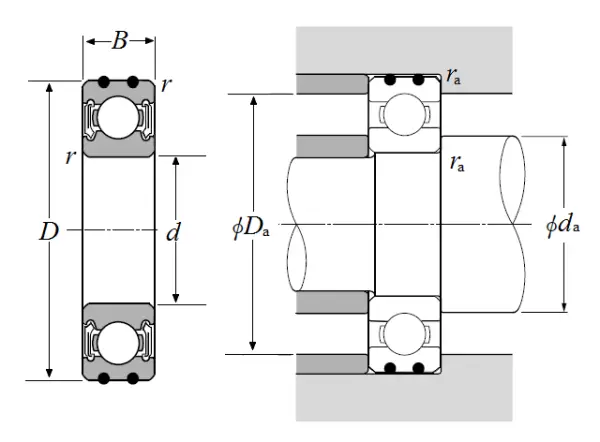

Dimensional Specifications
d
30.000 mm
D
72.000 mm
B
19.000 mm
r
1.100 mm
da min
36.500 mm
da max
43.000 mm
Da max
65.500 mm
ras max
1.000 mm
