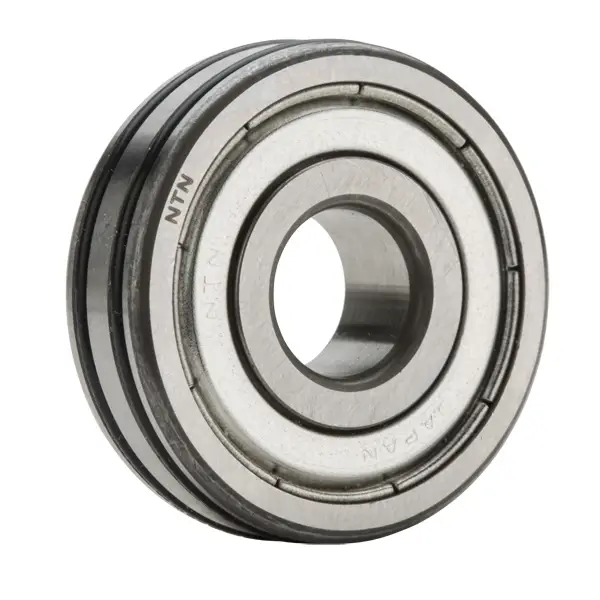

NTN AC-6307ZZ
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
8800 RPM
Precision
Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
CN
Static Load Rating
19100 N
Dynamic Load Rating
37000 N
Enclosure
Double Shielded
Weight
0.446 kg
Operating Temperature Range
-40 to 120 ºC

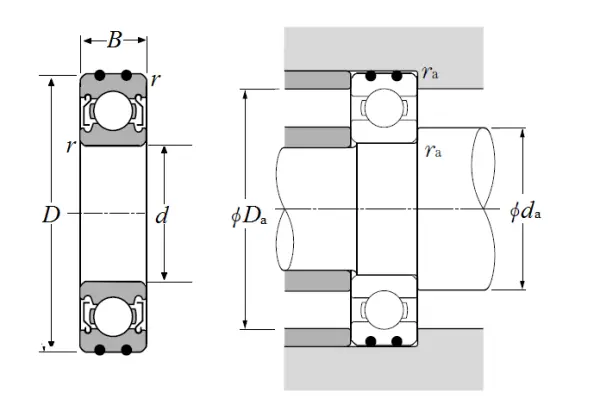

Dimensional Specifications
d
35.000 mm
D
80.000 mm
B
21.000 mm
r
1.500 mm
da min
43.000 mm
da max
47.000 mm
Da max
72.000 mm
ras max
1.500 mm
