NTN AC-6308ZZ
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Grease
7800 RPM
Precision
Class 0
Configuration
One
Factor
13.2
Radial Internal Clearance
CN
Static Load Rating
24000 N
Dynamic Load Rating
45000 N
Enclosure
Double Shielded
Weight
0.624 kg
Operating Temperature Range
-40 to 120 ºC

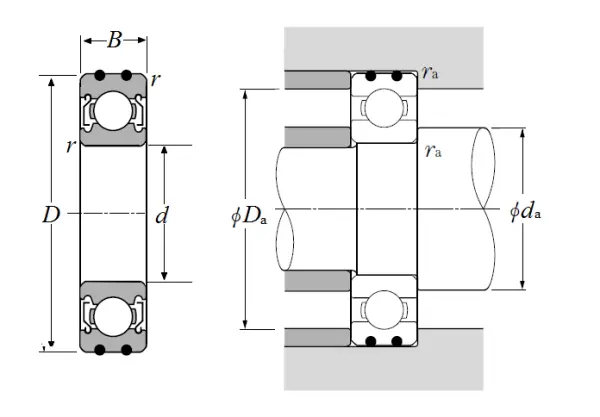

Dimensional Specifications
d
40.000 mm
D
90.000 mm
B
23.000 mm
r
1.500 mm
da min
48.000 mm
da max
54.000 mm
Da max
82.000 mm
ras max
1.500 mm
