NTN AC-6309C3
AC Bearings
(BRAND)：NTN
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Technical Specifications
Type
Ball Bearing
Bore Type
Round
Material
High Carbon Chrome Steel
Cage Type
Pressed
Cage Material
Steel
Limiting Speed - Oil
8200 RPM
Limiting Speed - Grease
7000 RPM
Precision
Class 0
Configuration
One
Factor
13.1
Radial Internal Clearance
C3
Static Load Rating
32000 N
Dynamic Load Rating
58500 N
Enclosure
Open
Weight
0.786 kg
Operating Temperature Range
-40 to 120 ºC

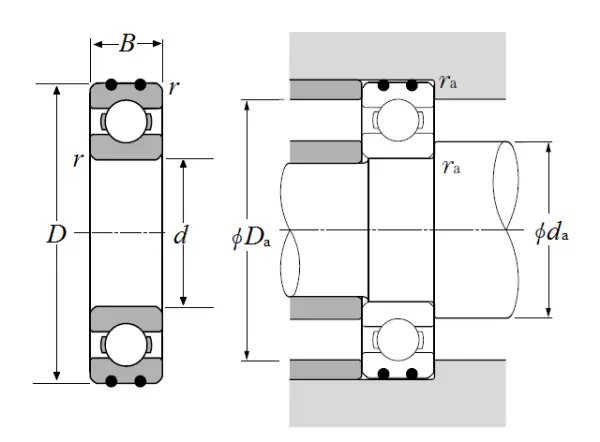

Dimensional Specifications
d
45.000 mm
D
100.000 mm
B
25.000 mm
r
1.500 mm
da min
53.000 mm
da max
61.500 mm
Da max
92.000 mm
ras max
1.500 mm
