NTN AEL202-010W3C3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Cylindrical
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
10000 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL202-010
Lubrication
Non-Relubricatable
Collar Number
C-010
Basic Outer Ring
202
Radial Internal Clearance
C3
Static Load Rating
4600 N
Dynamic Load Rating
9600 N
Enclosure
Full Contact Seal - Both Sides
Weight
0.110 kg
Operating Temperature Range
-40 to 120 ºC

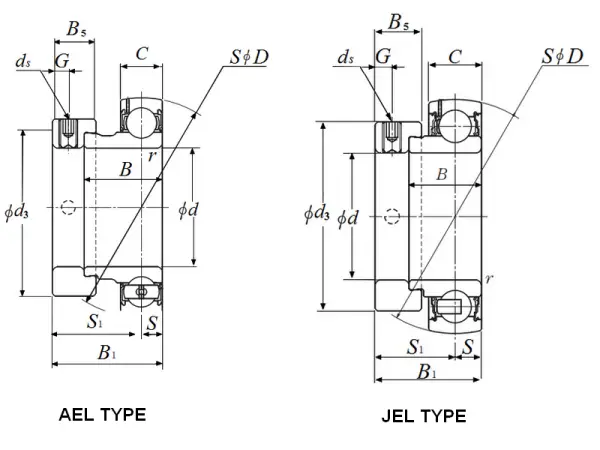

Dimensional Specifications
d
15.875 mm
D
40.000 mm
C
28.600 mm
B
28.600 mm
B1
28.600 mm
r
0.600 mm
ds
1/4-28 UNF
G
4.800 mm
d3
29.000 mm
B5
13.600 mm
S1
22.100 mm
S
6.500 mm
Specifications
Outside Ring Type
Spherical OD
Total Length
0.000 mm
Number of Holes
0
Axial Static Load Rating
4600 N
Radial Dynamic Load Rating
9600 N
Housing Width
0 mm
