NTN AEL204
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
6700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL204
Basic Outer Ring
204
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Double Sealed
Weight
0.160 kg
Operating Temperature Range
-40 to 120 ºC

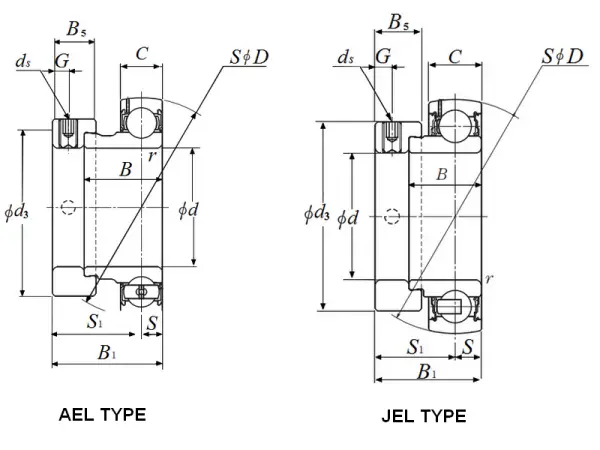

Dimensional Specifications
d
20.000 mm
D
47.000 mm
C
14.000 mm
B
21.500 mm
B1
31.000 mm
r
1.000 mm
ds
M6x0.75
G
4.800 mm
d3
33.000 mm
B5
13.500 mm
S1
23.500 mm
S
7.500 mm
