NTN AEL208-108D1W3
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL208-108
Lubrication
Relubricatable
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC

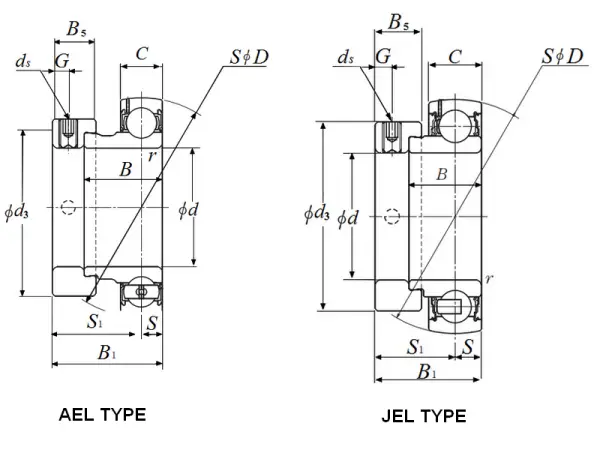

Dimensional Specifications
d
38.100 mm
D
80.000 mm
C
18.000 mm
B
30.200 mm
B1
43.700 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.800 mm
d3
60.000 mm
B5
18.300 mm
S1
32.700 mm
S
11.000 mm
