NTN AEL208D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3700 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Collar Number
EL208
Basic Outer Ring
208
Radial Internal Clearance
CN
Static Load Rating
17800 N
Dynamic Load Rating
29100 N
Enclosure
Double Sealed
Weight
3.210 kg
Operating Temperature Range
-40 to 120 ºC

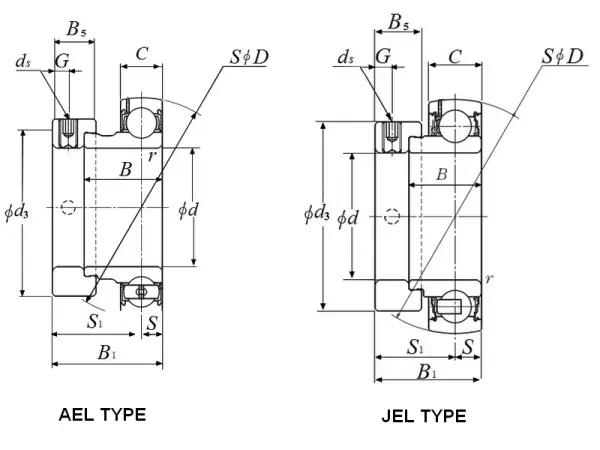

Dimensional Specifications
d
40.000 mm
D
80.000 mm
C
13.000 mm
B
13.000 mm
B1
43.700 mm
r
1.500 mm
ds
M10x1.25
G
6.800 mm
d3
60.000 mm
B5
18.300 mm
S1
32.700 mm
S
11.000 mm
Specifications
Radial Dynamic Load Rating
29100 N
Radial Static Load Rating
17800 N
