NTN AEL210-113D1
Eccentric Locking Collar Type Bearings - Spherical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3100 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Configuration
One
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL210-113
Lubrication
Relubricatable
Basic Outer Ring
210
Radial Internal Clearance
CN
Static Load Rating
23200 N
Dynamic Load Rating
43500 N
Enclosure
Double Sealed
Weight
0.835 kg
Operating Temperature Range
-40 to 120 ºC

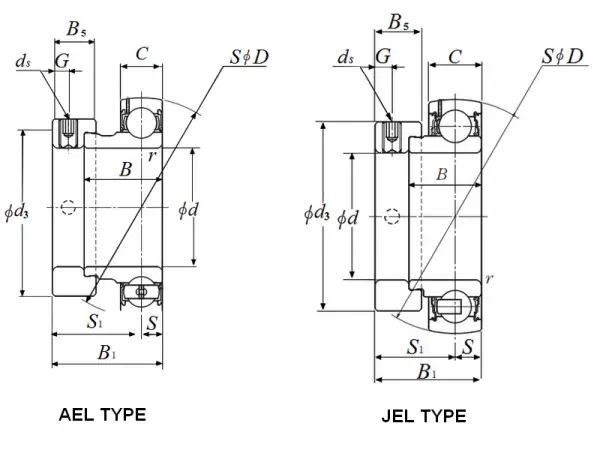

Dimensional Specifications
d
46.038 mm
D
90.000 mm
C
20.000 mm
B
30.200 mm
B1
43.700 mm
r
2.000 mm
ds
3/8-24 UNF
G
6.800 mm
d3
69.5 mm
B5
18.300 mm
S1
32.700 mm
S
11.000 mm
F
3.6 mm
