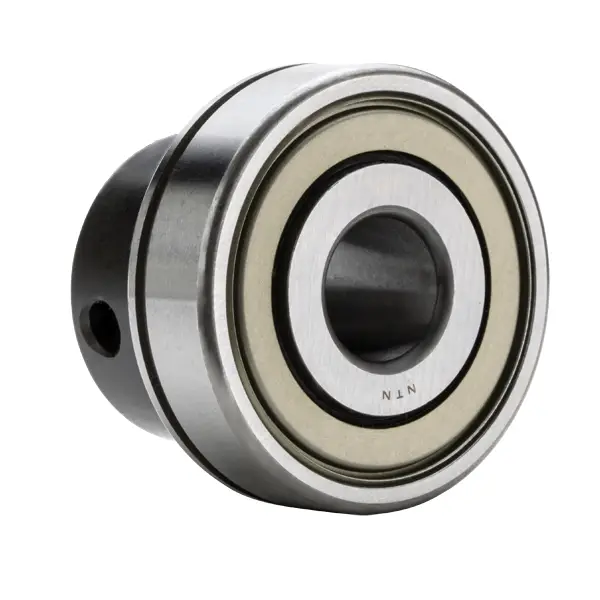

NTN AELS204N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Cylindrical
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Through Hardened Steel
Limiting Speed - Grease
6650 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Lubrication
Non-Relubricatable
Collar Number
EL204
Basic Outer Ring
204
Radial Internal Clearance
CN
Static Load Rating
6650 N
Dynamic Load Rating
12800 N
Enclosure
Full Contact Seal - Both Sides
Weight
0.164 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
20.000 mm
D
47.000 mm
C
31.000 mm
B
31.000 mm
B1
31.000 mm
r
1.000 mm
ds
M6x0.75
G
4.800 mm
d3
33.000 mm
B5
13.500 mm
S1
23.500 mm
S
7.500 mm
r1
0.600 mm
b
1.5 mm
a
2.3 mm
D1
44.600 mm
Specifications
Outside Ring Type
Cylindrical OD
Total Length
0.000 mm
Number of Holes
0
Axial Static Load Rating
6650 N
Radial Dynamic Load Rating
12800 N
Housing Width
0 mm
