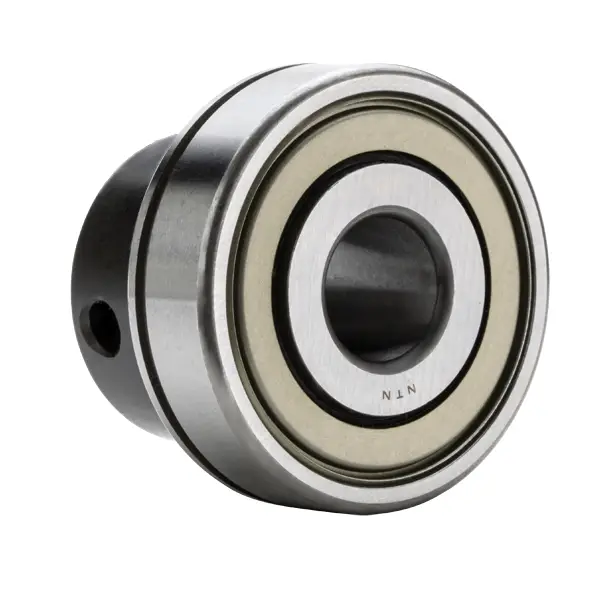

NTN AELS206N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Collar Number
EL206
Basic Outer Ring
206
Radial Internal Clearance
CN
Static Load Rating
11300 N
Dynamic Load Rating
19500 N
Enclosure
Double Sealed
Weight
1.560 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
30.000 mm
D
62.000 mm
C
23.000 mm
B
23.000 mm
B1
35.700 mm
r
1.000 mm
ds
M8x1
G
6.000 mm
d3
44.500 mm
B5
15.900 mm
S1
26.700 mm
S
9.000 mm
r1
0.600 mm
b
2.05 mm
a
3.18 mm
D1
59.6 mm
Specifications
Radial Dynamic Load Rating
19500 N
Radial Static Load Rating
11300 N
