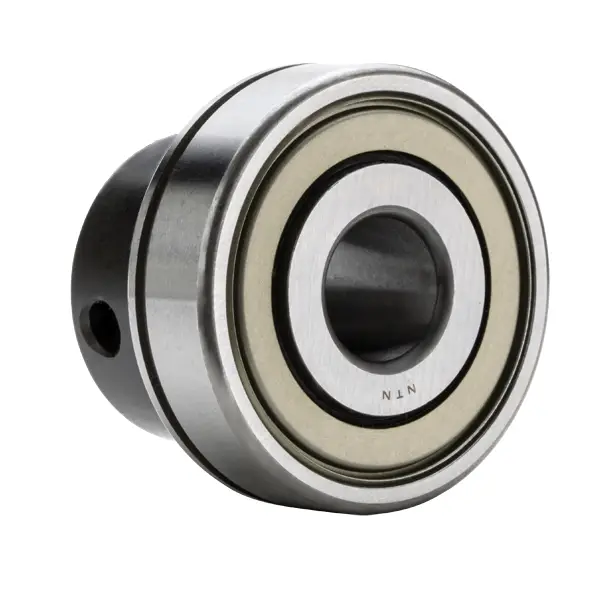

NTN AELS207N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
4200 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Collar Number
EL207
Basic Outer Ring
207
Static Load Rating
15300 N
Dynamic Load Rating
25700 N
Enclosure
Double Sealed
Weight
0.529 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
35.000 mm
D
72.000 mm
C
17.000 mm
B
25.400 mm
B1
38.900 mm
r
1.500 mm
ds
M10x1.25
G
6.800 mm
d3
55.500 mm
B5
17.500 mm
S1
29.400 mm
S
9.500 mm
r1
0.600 mm
b
2 mm
a
3.1 mm
D1
68.8 mm
