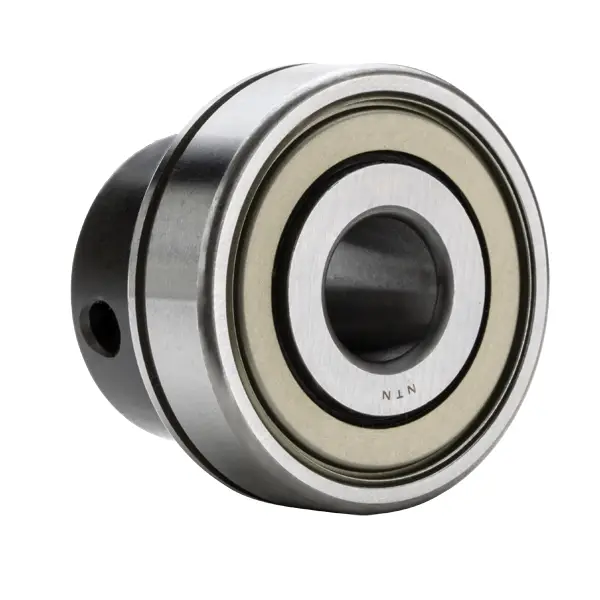

NTN AELS209-111N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
3500 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Locking Device
Eccentric Locking Collar
Locking Device Part Number
EL209-111
Lubrication
Non-Relubricatable
Collar Number
EL209-111
Basic Outer Ring
209
Static Load Rating
20400 N
Dynamic Load Rating
32500 N
Enclosure
Double Sealed
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
42.863 mm
D
85.000 mm
C
19.000 mm
B
30.200 mm
B1
43.700 mm
r
1.500 mm
ds
3/8-24 UNF
G
6.800 mm
d3
63.500 mm
S1
32.700 mm
S
11.000 mm
b
2 mm
a
3.1 mm
D1
81.8 mm
