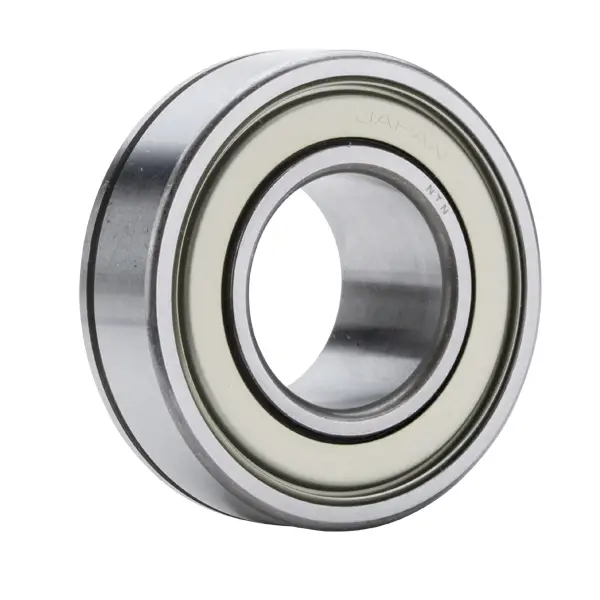

NTN ALS205-100N
Eccentric Locking Collar Type Bearings - Cylindrical O.D.
(BRAND)：NTN
(Availability)：In Stock
Technical Specifications
Type
Insert Bearing
Bore Type
Round
Bearing Type
Ball Bearing
Material
Through Hardened Steel
Ball Material
Steel
Limiting Speed - Grease
5900 RPM
Seal Type
Contact
Seal Material
Nitrile Rubber
Performance
Standard Duty
Radial Internal Clearance
CN
Static Load Rating
7800 N
Dynamic Load Rating
14000 N
Weight
2.230 kg
Operating Temperature Range
-40 to 120 ºC
Dimensional Specifications
d
25.400 mm
D
52.000 mm
C
14.000 mm
B
14.000 mm
r
1.000 mm
ds
1/4-28 UNF
G
4.800 mm
S
7.500 mm
Specifications
Radial Dynamic Load Rating
14000 N
Radial Static Load Rating
7800 N
